DIN sanitary pipe fitting factory, fast deliver and best price.
Order(MOQ) :
Mixed 50 pcsPayment :
TT, LC AT SIGHTProduct Origin :
JIANGSU PROVINCE,CHINAColor :
steelLead Time :
7-30DAYSMaterial :
stainless steel 304 316lCustomized Support :
ODM OEM

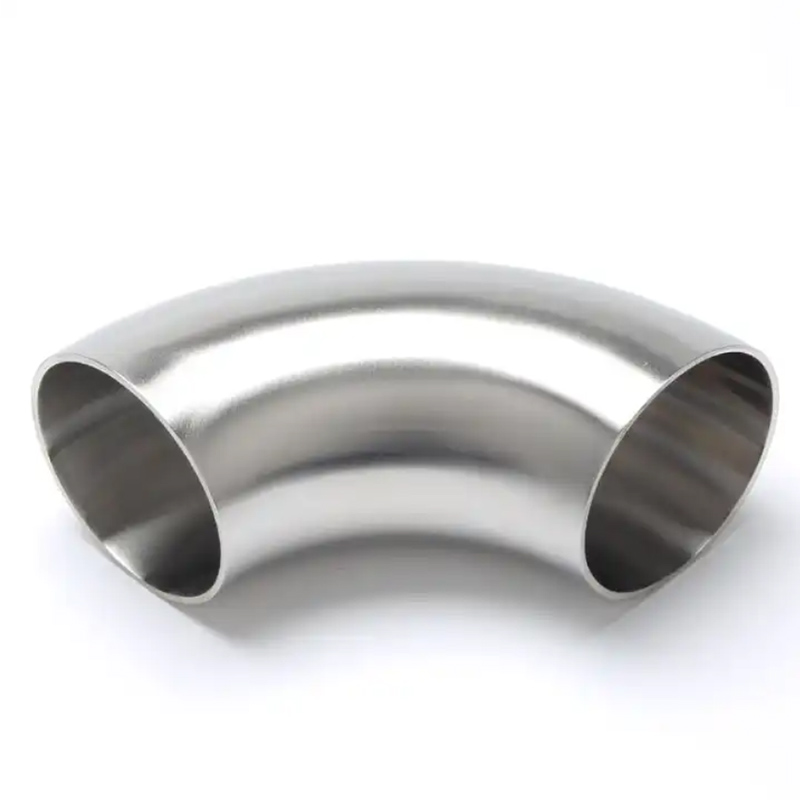

Sanitary stainless steel 90 elbow
3A Sanitary welded stainless steel pipe fitting
BEP Sanitary welded stainless steel pipe fitting
DIN Sanitary welded stainless steel pipe fitting
ISO Sanitary welded stainless steel pipe fitting

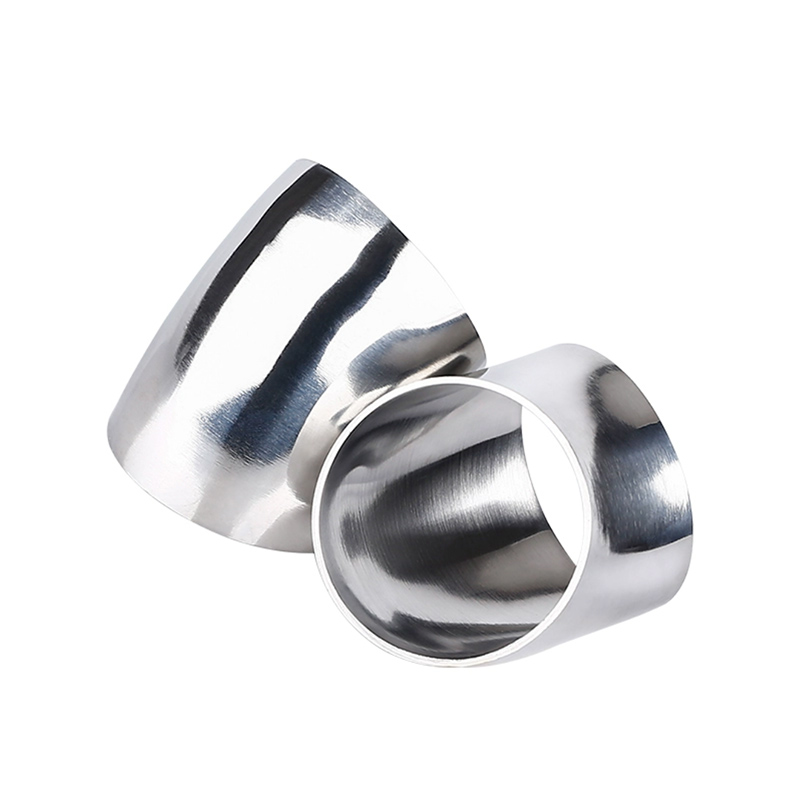

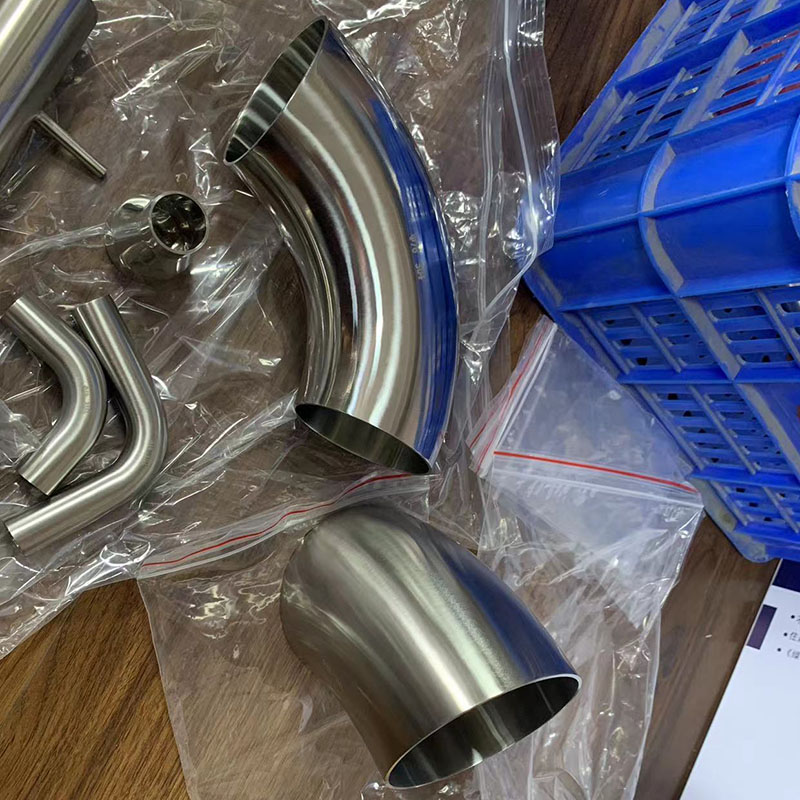

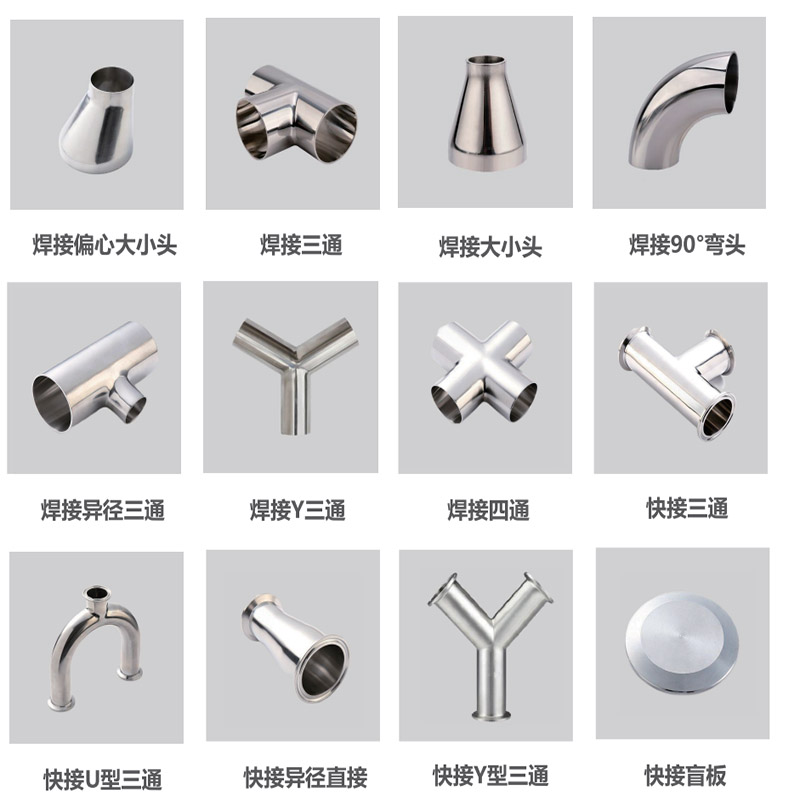

Mainly production: Sanitary 45 elbow, 90 elbow, 180 elbow, Sanitary tee and cross,
Sanitary reducer tee, Sanitary reducer, end cap, Sanitary clamp etc.
Hotsale sanitary stainless steel elbow size detail:
| Series Ⅰ(GB) | Series Ⅱ(JIS) | E series(EN) | 3A/BPE series | ||||||||
| Nominal diameter | outer diameter | Thickness | Nominal diameter | outer diameter | Thickness | Code | outer diameter | Thickness | Code | outer diameter | Thickness |
| DN15 | 16 | 0.8 | DN15 | 15.88 | 0.8 | DN10 | 15 | 1 | 3/8" | 9.53 | 0.89/1.0 |
| DN20 | 20 | 1 | DN20 | 22.22 | 1 | DN15 | 18 | 1 | 1/2" | 12.7 | 1.0/1.24 |
| DN25 | 25.4 | 1 | DN25 | 28.58 | 1 | DN20 | 22 | 1.2 | 5/8" | 15.88 | 1.24 |
| DN32 | 32 | 1.2 | DN32 | 34 | 1.2 | DN25 | 28 | 1.2 | 3/4" | 19.05 | 1.24/1.65 |
| DN40 | 40 | 1.2 | DN40 | 42.7 | 1.2 | DN32 | 35 | 1.5 | 1" | 25.4 | 1.65 |
| DN50 | 50.8 | 1.2 | DN50 | 48.6 | 1.2 | DN40 | 42 | 1.5 | 1-1/4" | 31.8 | 1.65 |
| DN65 | 76.1 | 2 | DN65 | 76.1 | 2 | DN50 | 54 | 1.5 | 1-1/2" | 38.1 | 1.65 |
| DN80 | 88.9 | 2 | DN80 | 88.9 | 2 | DN65 | 76.1 | 2 | 2" | 50.8 | 1.65 |
| DN100 | 108 | 2 | DN100 | 101.6 | 2 | DN80 | 88.9 | 2 | 2-1/2" | 63.5 | 1.65 |
| DN100 | 108 | 2 | 3" | 76.2 | 1.65 | ||||||
| 3-1/2" | 88.9 | 2.11 | |||||||||
| 4" | 101.6 | 2.11 | |||||||||
| 5" | 127 | 2.77 | |||||||||
| 6" | 152.4 | 2.77 | |||||||||
Welded Connection Definition：
Socket Argon Arc Welded Connection:
● Insert the stainless steel pipe into the fitting socket, with the connection mode of TIG
● Insert the stainless steel pipe into the fitting socket or pipes, with the connection mode of TIG .
● The pipe wall thickness of Socket weld is from 0.6 to 1.5mm, wall thickness over 1.5mm is suitable to butt welding
Suitable for low pressure fluid transportation of hot and cold water，direct drinking water、heating、air condition、fire protection and gas for civil use , and also for low-pressure fluid transportation pf pharmaceutical , beverage ,food , chemical and other industries.

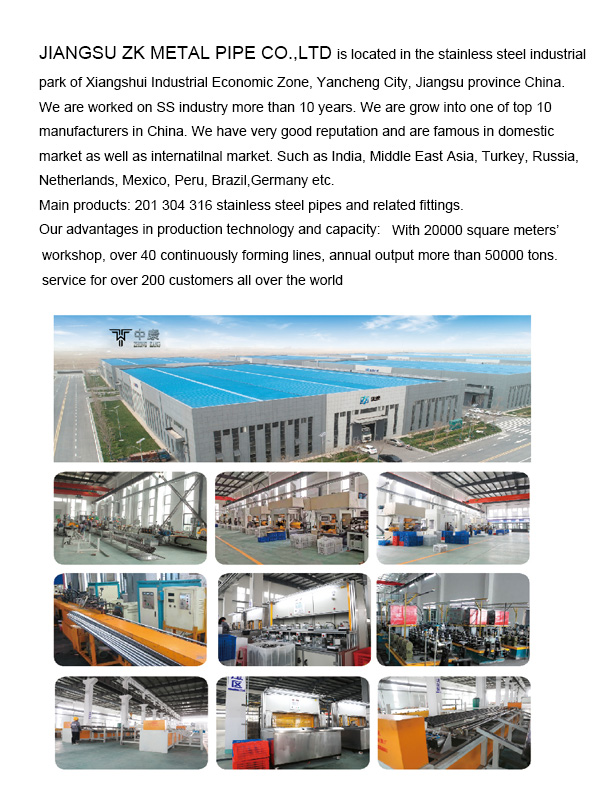

Factory profile & Honor

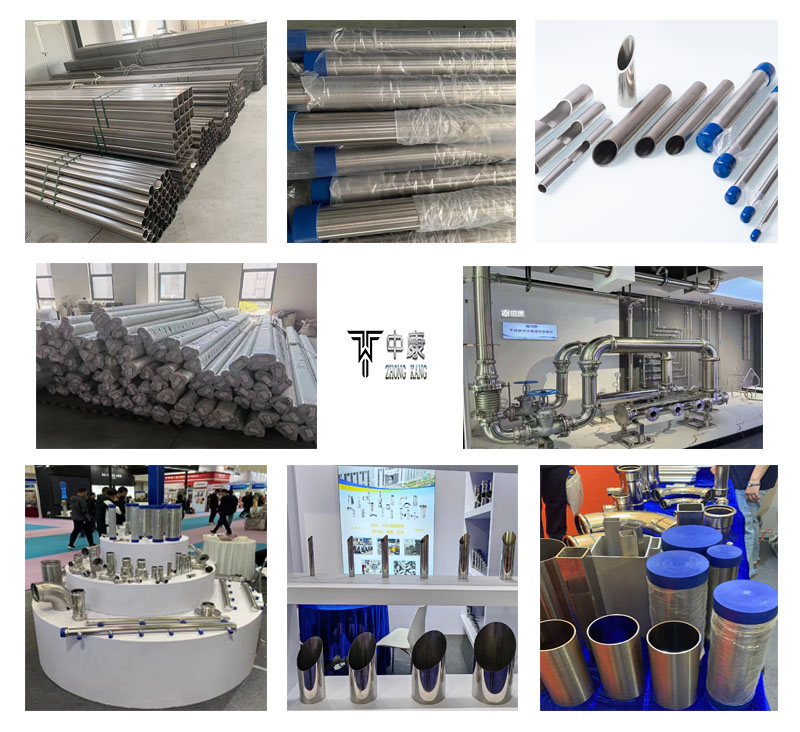

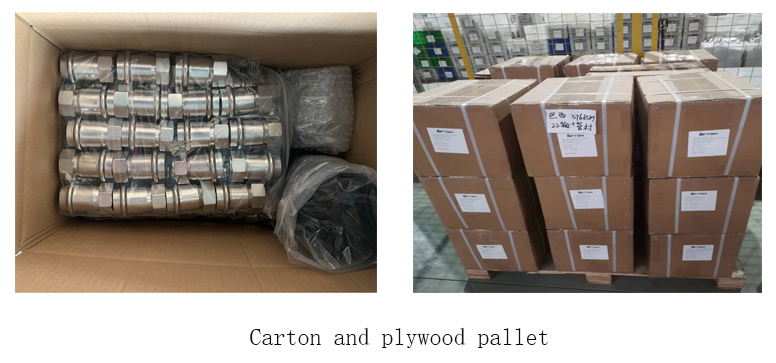

In ZK all of our stainless steel welded pipes & tubes are packaged as per international standard to prevent any possible damage or loss. We often packed the pipes and tubes with PE bag and plastic caps than wrapped woven plastic bag in outside. However, for some special pipes & tubes that are vulnerable to dirt, scratches, stress or rough handling, we will suggest plywood case for protection. Kindly note that the plywood case will have the extra cost, not only its own cost, but also the increased freight cost as the CBM is bigger, we suggest to with the plywood package if LCL shipment. For enhanced customer experience, we also provide dedicated package as per your special requirements.
FOB QINGDAO PORT CHINA or SHANGHAI PORT CHINA.
We takes " quality oriented,win-win development " as business philosophy and " Creating customer value " as our duty. We work hard and go on to observing the Stainless steel pipe and pipe fitting market information to seek better marketing mode to meet the customer's demand. Keep improving!
We attended many dmestic and abroad exhibition,such as TUBE CHINA,TUBE INDIA,WIRE DUSSELDORF,TUBE MIDDLE EAST AFRICA. And we often go to visit the main market of stainless steel pipe and pipe fitting in oversea like Russia,Germany,Brazil,Peru,Netherlands,Middle east, South africa,India and other principal markets to get the real demand from customers and marketing.
Welcome to contact with us and we will do our best for you.
