Seamless Stainless Steel Pipe tube
The Seamless stainless steel pipe/tube is one of the main products of ZK metal pipe manufacturer in China.All raw materials of stainless steel products are raw materialsfrom three major domestic steel plants, and they are subject to strict quality inspection.

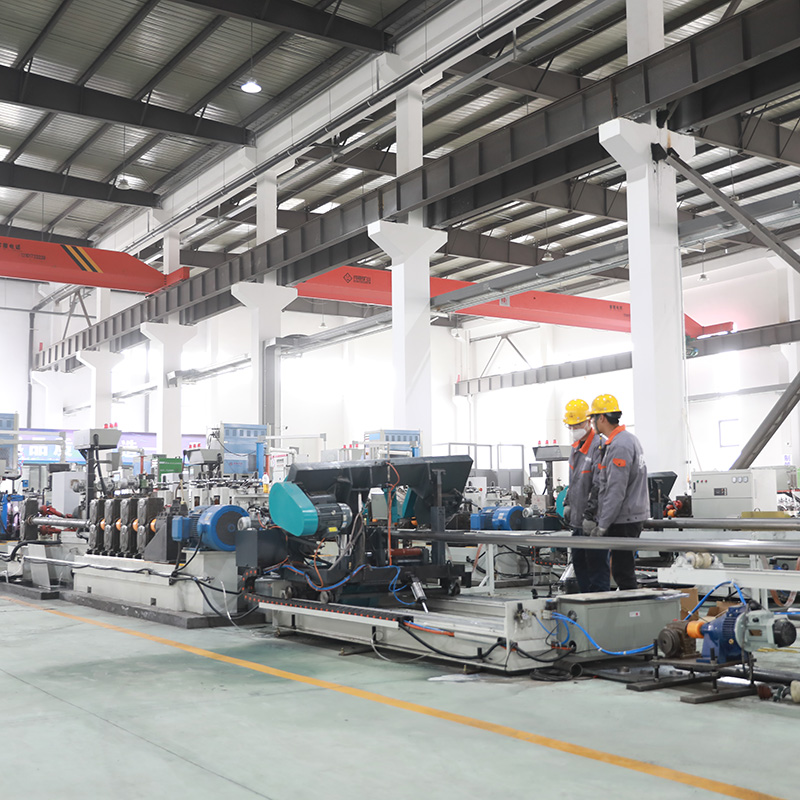

The whole production process from raw materialsinto the factory to Coil Slitting, pipe making and pipe fitting is completed in the factory, and there are strict quality inspection means.
ZK conducts production in strict accordance with the national stainless steel standards. Seamless Stainless steel pipe is a durable and high-quality product with standard size. Due to his easy to cleaning, it have the widly used on food industrial.
Production parameter detail:
Product Name
|
Stainless Steel Seamless Pipe
|
Standard
|
ASTM,AISI,SUS,JIS,GB,DIN,EN,BS
|
Chemical Composition
|
C,Mn,Si,P, S,Cr,N, Ni
|
Material
|
304,304L,309S,310S,316,316L,etc
|
Surface
|
hot rolled pickled ,polished,sand blasting,hairline
|
Trade Terms
|
Price Term
|
FOB,CIF, EXW
|
Payment Term
|
T/T,L/C AT SIGHT
|
Package
|
Export standard package as wooden box,bundled,Pvc
|
Delivery Time
|
7-15days
|
Quality Guarentee
|
ISO9001,SGS
|
Application
|
Stainless steel channel bar applies to petroleum, chemical industry, electric power, boiler, high temperature resistant,corrosion resistant. low temperature resistant
|
Production instruction:
Boiler Pipe/Tube
Heat Exchanger and Condenser Pipe/tube
Marine pipe/Tube
General Pipe/Tube
Instrumentation Pipe/Tube
Main Standard:
EN10216-5;EN10216-2;
DIN17456;DIN17458;
ASTM A312,A269,A213,A511,A789,
ASTM SA213,SA312,SA789,SA790.
GB/T14975,GB/T14976,GB13296,GB5310.GB9948
Remark: other size accept customized.
ASTM A312 |
PIPE TYPE: 304 316L BA/AP 316L EP |
WALL THICKNESS ( MM) |
SIZE |
O.D.(MM) |
SEAMLESS |
SEAM |
SCH5S |
SCH10S |
SCH40S |
SCH80S |
SCH100S |
1/2" |
21.34 |
√ |
√ |
1.65 |
2.11 |
2.77 |
3.73 |
一 |
3/4" |
26.67 |
√ |
√ |
1.65 |
2.11 |
2.87 |
3.91 |
一 |
1" |
33.4 |
√ |
√ |
1.65 |
2.77 |
3.38 |
4.55 |
一 |
1 1/4" |
42.16 |
√ |
√ |
1.65 |
2.77 |
3.56 |
4.85 |
一 |
1 1/2" |
48.26 |
√ |
√ |
1.65 |
2.77 |
3.68 |
5.08 |
一 |
2" |
60.33 |
√ |
√ |
1.65 |
2.77 |
3.91 |
5.54 |
一 |
2 1/2" |
73.03 |
√ |
√ |
2.11 |
3.05 |
5.16 |
7.01 |
一 |
3" |
88.9 |
√ |
√ |
2.11 |
3.05 |
5.49 |
7.62 |
一 |
4" |
114.3 |
√ |
√ |
2.11 |
3.05 |
5.74 |
8.08 |
一 |
5" |
141.3 |
√ |
√ |
2.11 |
3.05 |
6.02 |
8.56 |
一 |
6" |
168.28 |
|
√ |
2.77 |
3.4 |
6.55 |
9.53 |
一 |
8" |
219.08 |
|
√ |
2.77 |
3.4 |
7.11 |
10.97 |
15.09 |
10" |
273.05 |
|
√ |
2.77 |
3.76 |
8.18 |
12.7 |
18.26 |
12" |
323.85 |
|
√ |
3.4 |
4.19 |
9.27 |
12.7 |
21.44 |
14" |
355.6 |
|
√ |
3.96 |
4.57 |
9.53 |
12.7 |
23.83 |
ASTM A269 |
PIPE TYPE: 304 316L BA/AP 316L EP |
WALL THICKNESS |
LENGTH (MM) |
SIZE |
O.D. |
SEAMLESS |
SEAM |
MM |
4000/6000/5800 |
1/4" |
6.35 |
√ |
|
0.89/1.0 |
3/8" |
9.53 |
√ |
|
0.89/1.0 |
1/2" |
12.7 |
√ |
|
1.0/1.24 |
5/8" |
15.88 |
√ |
|
1.24 |
3/4" |
19.05 |
√ |
|
1.24/1.65 |
1" |
25.4 |
√ |
√ |
1.65 |
1 1/2" |
38.1 |
√ |
√ |
1.65 |
2" |
50.8 |
√ |
√ |
1.65 |
2 1/2" |
63.5 |
√ |
√ |
1.65 |
3" |
76.2 |
√ |
√ |
1.65 |
4" |
101.6 |
√ |
√ |
2.11 |
5" |
127 |
√ |
√ |
2.77 |
6" |
152.4 |
√ |
√ |
2.77 |
Advantages
As a material which can be implantable in human body, stainless steel has its natural advantages
1.Corrosion-resistance and Longevity 2.Simple Installation and Quick Operation 3.High Intensity and Light Material
4.Healthy Material and Environmental Friendly 5.Water Proof, Resistance to the Impact and High Pressure, Low Flow Obstacle
6.Convenient Maintenance and Modification 7.Long life service
Application

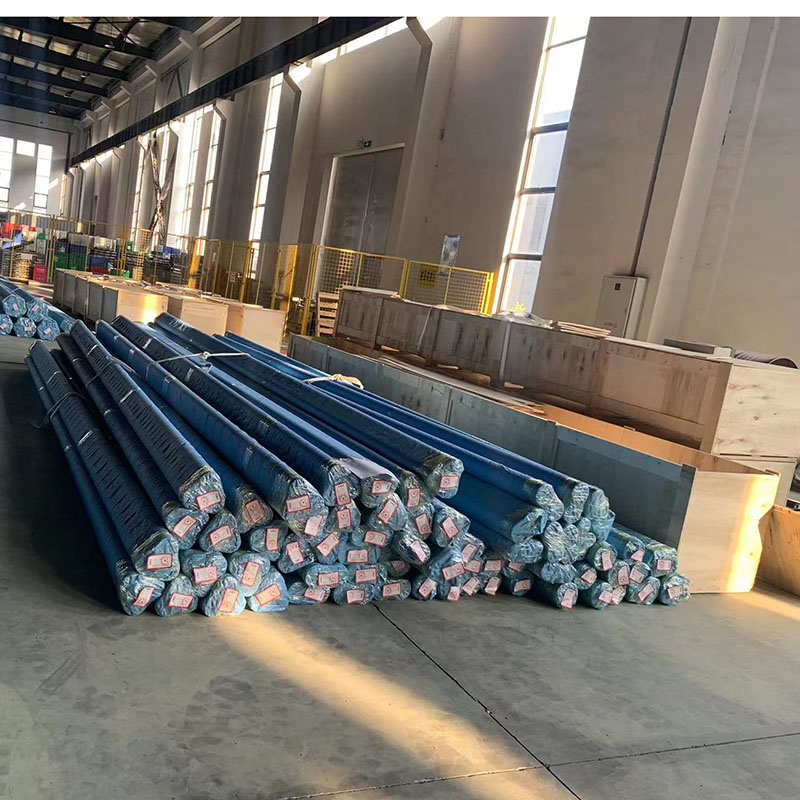

Package and delivery
In ZK all of our stainless steel welded pipes & tubes are packaged as per international standard to prevent any possible damage or loss. We often packed the pipes and tubes with PE bag and plastic caps than wrapped woven plastic bag in outside. However, for some special pipes & tubes that are vulnerable to dirt, scratches, stress or rough handling, we will suggest plywood case for protection. Kindly note that the plywood case will have the extra cost, not only its own cost, but also the increased freight cost as the CBM is bigger, we suggest to with the plywood package if LCL shipment. For enhanced customer experience, we also provide dedicated package as per your special requirements.
FOB QINGDAO PORT CHINA or SHANGHAI PORT CHINA.
Marketing Network
We takes " quality oriented,win-win development " as business philosophy and " Creating customer value " as our duty. We work hard and go on to observing the Stainless steel pipe and pipe fitting market information to seek better marketing mode to meet the customer's demand. Keep improving!
We attended many dmestic and abroad exhibition,such as TUBE CHINA,TUBE INDIA,WIRE DUSSELDORF,TUBE MIDDLE EAST AFRICA. And we often go to visit the main market of stainless steel pipe and pipe fitting in oversea like Russia,Germany,Brazil,Peru,Netherlands,Middle east, South africa,India and other principal markets to get the real demand from customers and marketing.
Welcome to contact with us and we will do our best for you.
